12 Ton European RTG Crane for Steel Fabrication Workshop in UAE

A metal fabrication workshop in the UAE needed a practical, flexible lifting solution for handling steel structures and welded components within its facility.

The workshop regularly handles loads between 5 and 10 tons, including:

• Steel beams
• Fabricated structural parts
• Welded assemblies and heavy components

However, the client faced several challenges in daily operation:

• The workshop had no overhead crane runway
• Limited space restricted fixed crane installation
• Multiple working stations required frequent material transfer
• Mobile crane rental increased the long-term operating cost

Because of these conditions, the client needed a flexible lifting system that works without structural modification and supports daily production flow.

Why the Client Chose a Small RTG Crane

After comparing various lifting options, the client selected a rubber-tyred gantry crane (RTG) from Yuantai Crane as the most efficient solution.

Option Comparison

Overhead Crane

• Needs runway beams and building structure changes
• High installation cost
• Fixed working coverage

Mobile Crane (Rental)

• Flexible but expensive for long-term use
• Not suitable for daily internal handling

Small RTG Crane (Final Choice)

• No runway system required
• Moves freely inside and outside the workshop
• Lower total investment
• Fast installation
• Works well for multi-station handling

The gantry crane for the steel fabrication workshop gave the client the best balance of flexibility, cost control, and operational efficiency.

Is This 12 Ton RTG Crane Right for Your Workshop?

This type of rubber tyred gantry crane without runway works well in similar working conditions:

• You handle loads between 5 and 15 tons
• Your workshop does not have an overhead crane runway
• You need to move materials between different stations
• You want a mobile lifting solution instead of a fixed system
• You prefer lower investment with practical performance

If your situation matches these conditions, this solution may fit your workshop as well.

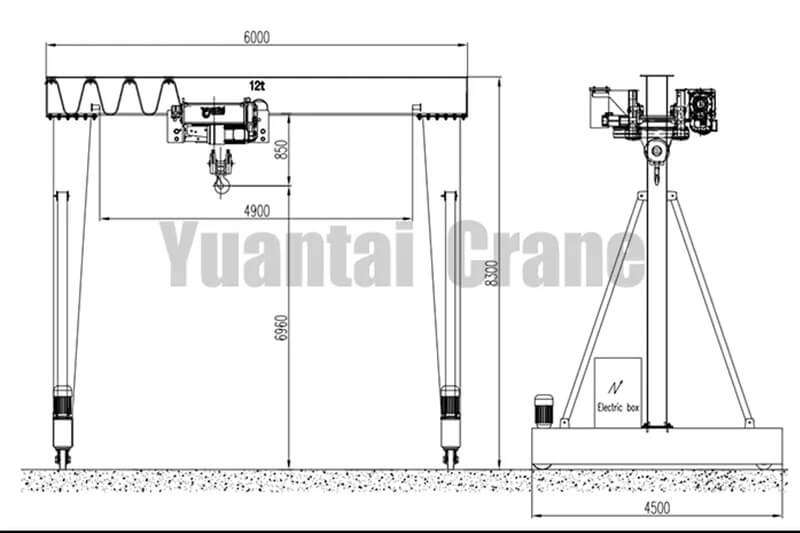

12 Ton Gantry Crane Specifications

Yuantai Crane supplied the single girder gantry crane with a European standard configuration designed for workshop use:

Basic Parameters

1. Lifting Capacity: 12 tons
2. Span: 6 m
3. Lifting Height: 6.96 m
4. Structure: Single girder, European standard design
5. Design: No cantilever

Performance Data

1. Lifting Speed: 0.7 / 4.0 m/min
2. Hoist Traveling Speed: 1.0 – 10 m/min
3. Crane Traveling Speed: 0.8 – 8 m/min
4. Power Supply: 415V / 50Hz / 3-phase
5. Control System: Pendant control + Remote control
6. Protection Level: IP54

Key Design Features

This 12 ton gantry crane uses a European standard structure designed for stable and efficient operation in workshop environments.

• Compact structure with lower self-weight
• Smooth and stable lifting performance
• Rubber-typed wheels for flexible movement
• No fixed runway required
• Dual control modes for easier operation

These features make it suitable for steel fabrication and general industrial handling tasks where flexibility matters.

Typical Applications of Small RTG Cranes

• Steel fabrication workshops
• Metal processing factories
• Equipment installation projects
• Warehouse material handling
• Precast concrete handling

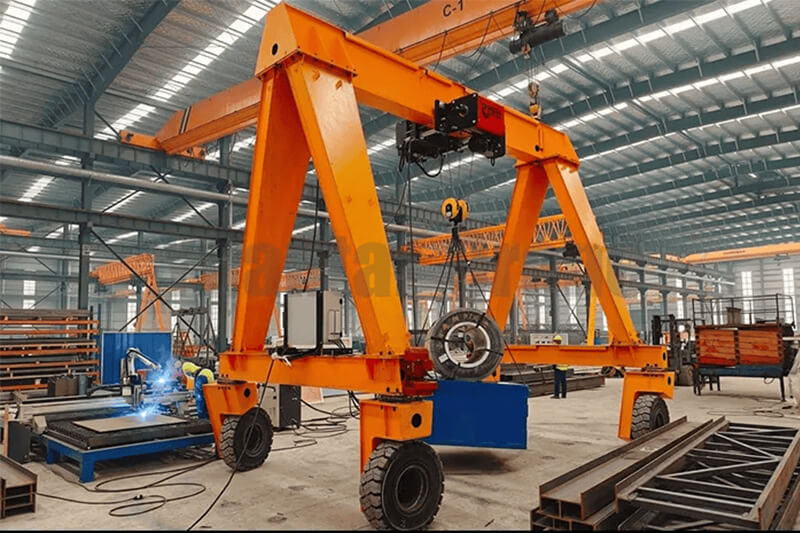

Project Application in the UAE Workshop

After installation, the RTG crane supported daily workshop operations, including:

• Lifting steel beams between cutting and welding stations
• Moving fabricated steel structures for assembly
• Handling welded components during production flow
• Loading and unloading heavy industrial parts

The operator used both remote control and pendant control, which improved safety and allowed precise load positioning even in tight workshop spaces.

Project Results and Benefits

After commissioning, the client achieved clear operational improvements:

• Faster material handling between workstations
• Reduced dependence on forklifts and manual lifting
• Lower cost compared to crane rental solutions
• Flexible movement without fixed structural limits
• Safer and more controlled lifting operations

The RTG crane now plays an important role in daily production efficiency.

Why More UAE Workshops Choose RTG Cranes

Compared with traditional overhead crane systems, small RTG cranes offer several practical advantages:

• No civil construction or runway installation required
• Faster delivery and commissioning
• Lower initial investment
• Flexible layout adaptation inside workshops
• Strong return on investment for medium-duty lifting

Customization Options

Yuantai Crane can adjust RTG crane specifications based on your workshop requirements:

1. Capacity range: 5–20 tons
2. Span range: 5–20 m
3. Indoor or outdoor operation
4. Manual or motorized traveling system
5. Special designs for dust, heat, or harsh environments
