15 Ton European Overhead Crane Solution for Mexico Factory

Overview: Turning an Empty Workshop into a High-Efficiency Production Line

The manufacturing landscape in Mexico is experiencing a massive boom. As more international companies relocate or expand their production lines to industrial hubs like Monterrey, Tijuana, and Querétaro, local factory owners face a critical question: How do we design a new workshop that maximizes available space while maintaining peak operational safety and precision?

When expanding a manufacturing plant, many business owners believe they only need to purchase a crane. However, a crane cannot operate in thin air. It requires pillars, runway beams, and a reliable rail system. Buying these components separately from different local suppliers often leads to installation mismatches, delayed timelines, and skyrocketing costs.

Recently, Dongqi Crane successfully delivered a complete, turnkey lifting solution for a manufacturing client in Mexico who was building a new workshop extension. By supplying not just a high-end 15-Ton European single girder overhead crane, but also the entire supporting steel structure from the ground up, we helped the client transition from an empty concrete floor to a fully operational, high-efficiency facility without the typical logistical headaches.

1. The Client's Challenge: New Plant Expansion and the Need for Precision Lifting

Our client, an expanding manufacturing specialist in Mexico, was constructing a new workshop bay to increase their production capacity. Their daily operations involved handling heavy machinery components, precision molds, and structural raw materials.

They faced three distinct challenges during their planning phase:

• Limited Headroom: The new workshop design had a strict height restriction. A traditional, bulky overhead crane would take up too much vertical space, significantly reducing the actual lifting height available for moving large equipment.
• Precision and Safety Requirements: The materials they handle are expensive and sensitive. Standard cranes with single-speed controls often cause loads to swing or jerk during starting and stopping, risking damage to products and nearby workers.
• The Chaos of Managing Multiple Vendors: The client did not want to buy the crane from one country, source the structural steel beams from a local Mexican distributor, and hire a third-party engineer to figure out if the two parts would actually fit together. They needed a single, reliable partner to handle the entire system.

After reviewing their workshop layouts and operational goals, Dongqi Crane proposed a tailored Turnkey European-type Crane System.

2. The Solution: Customized 15-Ton European overhead crane with Steel Structures

To solve the client's space constraints and eliminate their procurement stress, Dongqi Crane engineered a complete package designed to fit their exact architectural dimensions and local power grid specifications.

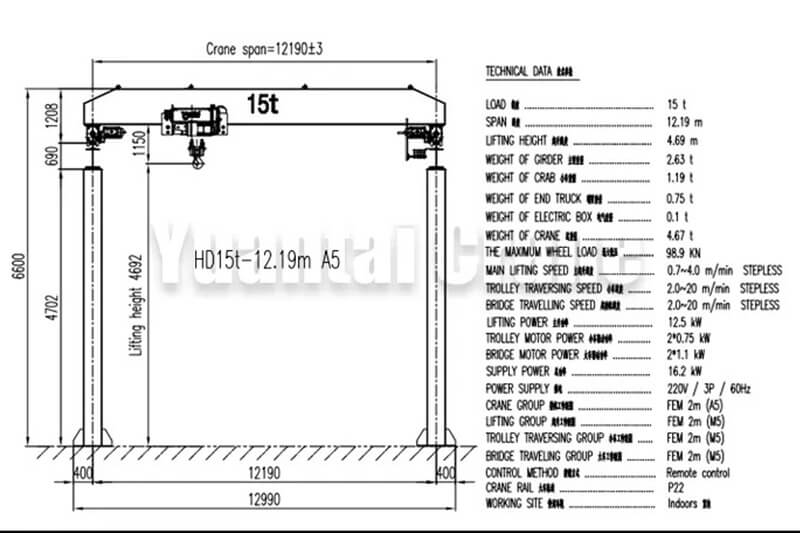

The crane specifications

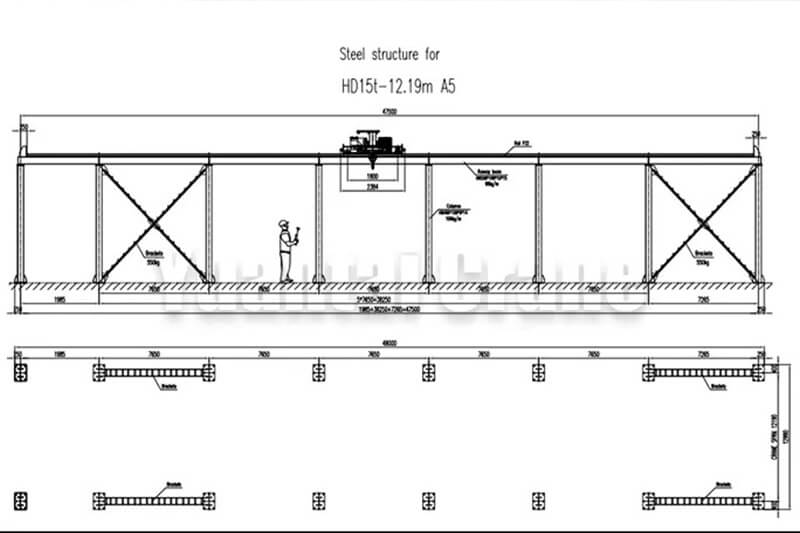

The Complete Steel Structure Package (Turnkey Service)

Rather than leaving the client to source structural steel locally, Dongqi Crane manufactured and supplied the entire supporting framework:

• Columns/Pillars: 16 robust heavy-duty steel columns (HN496*199*9*14 structural steel), each standing 4.704 meters high, to support the entire weight of the crane and its maximum load.
• Runway Beams: Two 48-meter continuous runway beams (HN596*199*10*15) to create a smooth, long-distance travel path down the length of the workshop.
• Inter-Column Bracing: 4 complete sets of structural bracing to ensure the entire steel framework remains completely rigid and vibration-free during acceleration and braking.
• Crane Rails: 96 meters of heavy-duty P22 steel rails, perfectly machined to match the crane's end trucks.

3. Why "European-Type" Technology Makes a Difference for Mexican Factories

Many buyers ask: What makes a "European-type" crane better than a traditional overhead crane? For our client in Mexico, the choice came down to three measurable benefits:

Maximum Lifting Height in Compact Spaces

Traditional 15-ton cranes feature a large, boxy design with a heavy electric hoist that sits low beneath the bridge girder. This design wastes valuable vertical clearance.

The European-type crane uses an optimized low-headroom design. The crane bridge is compact, and the included European wire rope hoist is engineered to sit much closer to the ceiling. Even with a total column height of just 4.704 meters, we achieved a highly impressive 4.69-meter actual lifting height. This allowed the factory to handle tall machinery loads that would be impossible to lift with a standard crane.

Total Speed Control with Inverter Systems (Full VFD)

The defining feature of this 15-ton crane is its Full Variable Frequency Drive (VFD) configuration. Every movement—lifting up and down, moving left and right along the girder, and traveling down the length of the workshop—is governed by an electronic inverter system.

• Lifting Speed: 0.7 to 4.0 meters per minute.
• Trolley Travel Speed: 2.0 to 20 meters per minute.
• Crane Long-Travel Speed: 2.0 to 20 meters per minute.

Instead of sudden, aggressive jolts, the crane accelerates smoothly from a slow crawl up to maximum speed and decelerates gently to a complete stop. This "soft-start and soft-stop" function acts as a built-in anti-sway mechanism. It gives the operator absolute control when aligning precision parts or setting heavy loads onto concrete floors.

Reduced Maintenance and Lower Power Bills

European-type cranes utilize high-efficiency, hardened-gear three-in-one motors. These motors are permanently lubricated and designed to run cooler, significantly reducing electricity usage. For a Mexican business managing rising energy costs, this efficiency provides a massive long-term financial advantage.

4. Seamless Execution: Shipping and Easy Local Assembly

A common fear among industrial buyers in Latin America is that importing a massive steel structure from overseas will lead to logistical nightmares or assembly errors on the factory floor.

Container-Friendly Modular Engineering

Shipping a 12.19-meter steel bridge girder and dozens of 4.7-meter steel pillars across the ocean requires smart design. Dongqi Crane's engineering team utilized a modular construction approach. Every connection point for the pillars, runway beams, and cross-bracing was pre-drilled and machined at our factory. The structures were finished with a multi-layer, corrosion-resistant industrial coating to withstand the ocean transit before being loaded into standard shipping containers.

Plug-and-Play Electrical Wiring

Industrial electricity can be complicated, especially when dealing with a full VFD system. Before packing, our team fully assembled the crane's electrical control panels, ran the heavy-duty festoon cable tracks, and tested the wireless remote control system. Every single wire and terminal was clearly numbered and color-coded.

Stress-Free Local Installation

When the containers arrived at the client's site in Mexico, their local crew didn't need to do any heavy welding or structural cutting. Because every piece was pre-fabricated to exact dimensions, the installation process was straightforward:

• Erect the 16 steel pillars and secure them to the foundation bolts.
• Bolt the 48-meter runway beams across the tops of the pillars and install the P22 tracks.
• Hoist the 12.19-meter single girder crane onto the rails.
• Plug together the pre-marked industrial electrical connectors.

Dongqi Crane provided complete, step-by-step installation guides and detailed electrical schematics. Our engineers maintained daily communication with the client's team via remote video calls, ensuring the system was safely commissioned and passed local safety checks without a hitch.

5. The Result: A Scalable, High-Performance Workshop

Today, the client's new workshop expansion in Mexico is fully operational. The 15-ton overhead crane glides silently down the runway, moving heavy manufacturing loads with absolute precision.

By choosing a comprehensive turnkey solution from Dongqi Crane, the client achieved several key outcomes:

• Zero Component Mismatches: Because the pillars, rails, beams, and crane came from the same engineering source, everything lined up perfectly during assembly.
• Maximum Space Utilization: The low-headroom design provided the exact vertical clearance needed to safely handle their largest products.
• Enhanced Workplace Safety: The wireless remote control and smooth VFD travel speeds have virtually eliminated load sway, creating a vastly safer environment for factory workers.
