10+10 Ton Double Trolley Overhead Crane for Netherlands

Double hoist overhead crane for sale Netherlands. 6 sets of overhead crane with 2 hoists, European design & low headroom— for efficient industrial lifting.

Introduction

This case study looks closely at six double hoist overhead cranes currently available for sale in Netherlands. These six cranes come in three different capacity pairs - 5+5 tons, 10+10 tons, and 12.5+12.5 tons - each designed to handle different scales of industrial work. All feature a European-style double girder design combined with low headroom electric hoists, making them practical for a range of facilities.

Double hoist cranes play an important role in many industries. They allow operators to lift heavier or more awkward loads by using two hoists instead of one, offering greater flexibility and efficiency. Whether it's manufacturing, steel processing, or warehousing, these cranes help improve workflow and reduce downtime by speeding up load handling and increasing safety.

Key Points

• Case study focuses on six double hoist overhead cranes available in Netherlands
• Cranes offered in capacities of 5+5T, 10+10T, and 12.5+12.5T
• European double girder design with low headroom hoists for compact spaces
• Double hoist cranes improve lifting flexibility and efficiency
• Widely used across industries like manufacturing, steel, and warehousing

Technical Specifications of the Six Crane Sets

These six double hoist overhead cranes are built following European engineering standards and are designed with double girder beams for extra lifting strength and long-term durability. The structure is solid, especially for operations that require consistent heavy lifting.

What makes these cranes even more versatile is the use of low headroom electric hoists. These hoists are compact and mounted in a way that reduces the vertical space they take up. That means you can use them even in buildings where ceiling height is limited, without losing valuable lifting range.

Specification Breakdown for Each Set

Each pair of cranes is suited to a specific workload and workspace layout.

Main Terms

• Lifting Capacity: The total weight each hoist can handle. For example, a 10+10T crane has two hoists, each rated for 10 tons. You can use them independently or together, depending on how the load is positioned.
• Span: This refers to the width of the crane bridge - essentially how far across the workspace the crane can travel. You'll want this to match the size of your bay or shop floor.
• Lifting Height: This is the vertical range the hook can travel. It tells you how high you can lift a load off the ground - critical for stacking, loading, or accessing elevated areas.

Why These Specs Are Useful

• If your workflow involves lifting various weights, the dual hoist setup gives you the flexibility to adapt without changing equipment.
• Matching the span to your workshop size helps avoid wasted movement or structural conflicts.
• Knowing your lifting height helps ensure you won’t run into ceiling limits or struggle with low-clearance work.

These specifications aren't just numbers - they help you plan smarter, install correctly, and avoid paying for crane capacity or coverage you won't use.

Key Features of the Double Hoist Overhead Cranes

These double hoist overhead cranes come with a mix of smart design choices and heavy-duty components that make them well-suited for real industrial use. Whether you're moving large parts, lifting equipment for assembly, or simply need safe and repeatable hoisting operations, the features listed below support that work reliably.

Flexible Load Handling with Dual Hoists

The dual hoist setup is one of the biggest advantages of these cranes. Instead of relying on a single hook, you get two lifting points on the same bridge.

• Handle long or unbalanced loads by lifting from both ends simultaneously.
• Lift two separate loads at once, provided they fall within the rated capacity.
• Precise positioning is easier since two hoists offer better control over how the load tilts or turns.
• Ideal for production lines that require synchronized lifting, turning, or tilting during assembly or processing.

This feature adds a level of flexibility that standard single-hoist cranes simply can't match.

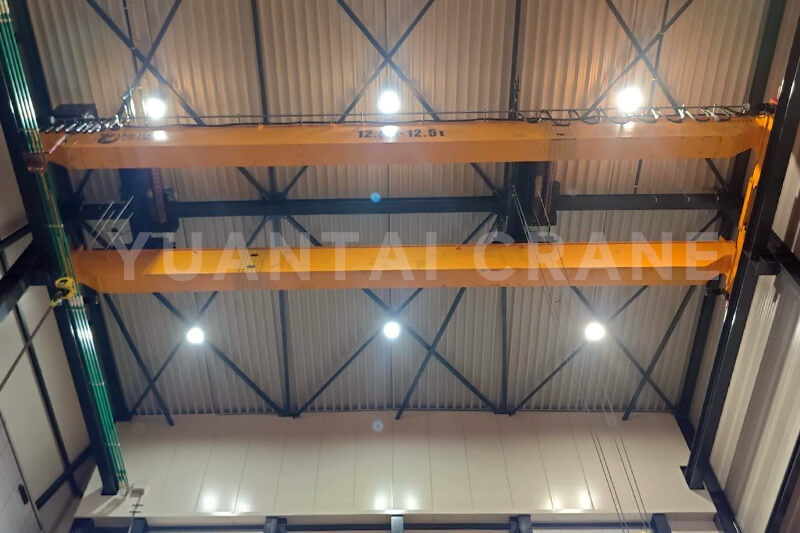

Strong and Reliable Double Girder Design

These cranes are built with a double girder bridge, meaning two parallel beams support the hoisting equipment. This type of construction is preferred when lifting heavier loads or spanning longer distances.

• More lifting power with better weight distribution across the bridge.
• Increased stability under load, reducing sway and improving control.
• Durability for long-term use in demanding environments like steel mills, warehouses, or fabrication shops.
• The double girder also allows the hoist to travel on top of the beams, maximizing hook height.

You won't find the structure flexing or straining under pressure - it's designed for industrial-scale work.

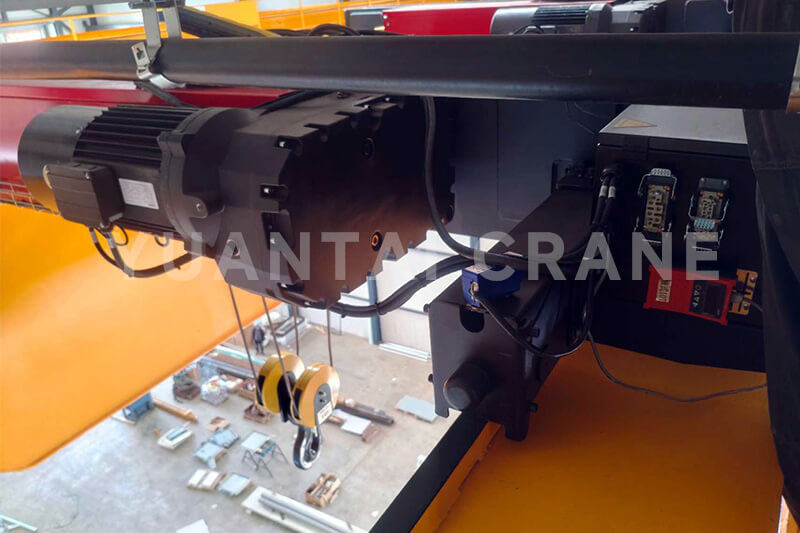

Space-Saving Low Headroom Hoists

Each crane is equipped with low headroom electric wire rope hoists, which help make the most out of available vertical space.

• Compact design reduces the gap between the hoist and the beam, increasing the effective lifting height.
• Suitable for buildings where ceiling height is limited or when you want to maximize stacking height.
• Easy to install in retrofits or existing facilities without needing structural changes.
• Helps avoid unnecessary building modifications just to fit the crane.

These hoists keep the profile low but the performance high - they're both efficient and smart in tight spaces.

Integrated Safety and Control Systems

These cranes aren't just strong - they're also smart and safe. Built-in control and protection systems ensure reliable and predictable operation.

• Limit switches protect against over-travel in both lifting and trolley movement.
• Overload protection prevents the crane from lifting beyond its rated capacity.
• Anti-sway functions and frequency inverters (optional) help with smooth starts and stops.
• Wireless remote controls and cab or pendant options allow operators to control from a safe distance.

Safety features aren't optional - they're standard, helping reduce risks during daily use.
