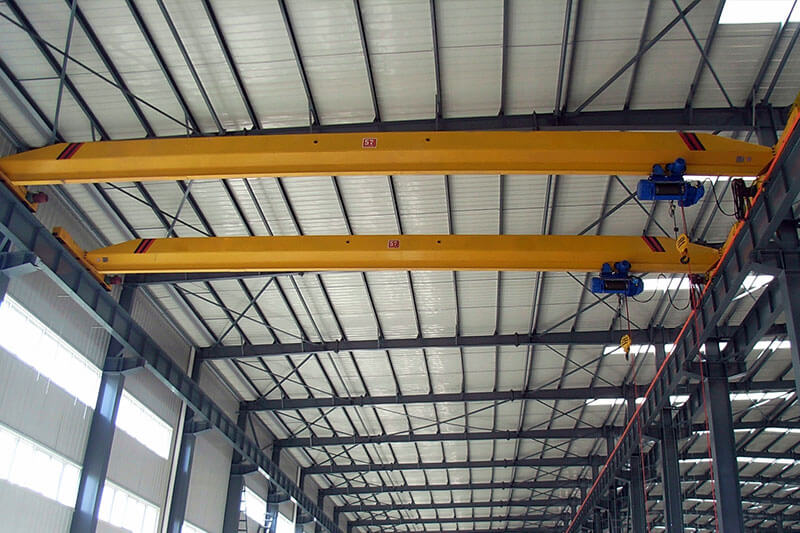

Single Girder Overhead Crane LD

Production Details

Single girder electric hoist crane introduction

Designed and produced according to national standards, the electric single girder crane is a light small lifting crane, equipped with electric hoists as the lifting mechanism, The lifting capacity of the single girder electric hoist crane is 1 to 32 tons and the working class is A3 and A4.

Application of single girder electric hoist crane

The electric hoist crane is used to lift loads in the various environment, such, as, factory, ware house, stockyard, etc. However, they are banned to be used in some dangerous environment, such as, combustible environment and explosive environment, etc.

sing girder electric hoist crane drawing

Advantages of single girder electric crane

• Good design, strong rigidity
• Good suability, convenient in use and strong commonality
• Steady travelling with speed adjusting function
• Wide selection of electric hoists.

Production Features

Features of single girder electric crane

On single girder.

• The crane girder is made by high quality I steel and high quality u-shaped slot into composition. End girder is welded with rectangular tubes or good steel.
• The girder can be assembled and adjusted easily and rapidly.
• Compact structure which are small and light.
• The specially made wheels are light and widely used.
• Smoothly moving, effectively braking, long service life,

On electric parts.

• Hoist and crane is controlled separately, and can move together and separately.
• Flat cable or special cable power supply for electric hoist
• Galvanize slide and cable small trolley
• Smoothly moving, overall aesthetics
• Set electric taxi speed is high, ensure continuing power supply,
• Operation, hoisting, the point start special smoothly,
• Users can choose according to different needs

On safety device

• Anti-collision, sound and light alarm devices.
• Circuit self-check protector.
• Flow phase lack protection.
• And various of safety measures are installed according to regulations.

On operation devices

• Ground control and cabin control
• The cable have open style and close style, can fixed on left or right
• The open direction include end open, side open or top open
• The cabin has special small room and the capsule cabin.
• Ground control has handle and remote control, do not need to set up special driver
• Users can choose as you need
