QZ Grab Bucket Overhead Crane

Production Details

Grab crane introduction

Grab crane is a heavy duty overhead crane equipped with grab bucket, which can be used frequently. The lifting capacity of grab crane included the dead weight of the grab bucket is 5 ton to 25 tons. The working class of the grab crane is A6. The specifications of the grab crane is given in the following table for your reference and customized design can be provided by DQCRANES.

Components of grab crane

Grab crane is mainly consisted of bridge frame, crane traveling mechanism, lifting trolley, electric equipment, grab bucket, etc.

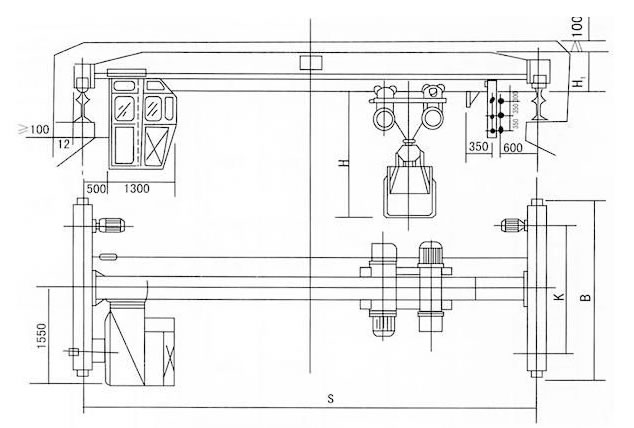

Grab crane drawing

Application of grab crane

Grab crane is widely used in power station, storage, smelting workshop of steel mill, port, cement plant, and waste recycling station, etc. to load and unload scattered objects. The grab crane has a high requirements on heat, dust, and aggressive environment. DQCRANES can provide you the optimal grab crane to your applications.

Production Features

Advantage and features of grab crane

• Optimal designed grab cranes are widely used for serving stores and bunkers with automatic, semiautomatic and manual control.
• Laser-assisted height measurement is equipped with the grab overhead crane.
• Grab cranes can work all around clock.
• Safety protection devices such as limit switches for lift and CT are equipped for safe lifting and traveling.
• Overload Protection Device increases performance security.
• Easy and convenient operation is realized by remote control of grab cranes.
• Equipped with double speed mechanism, our grab cranes have a better working performance in terms of precision.
• Low voltage protection, phase sequence protection and emergency stop device are equipped to grab cranes.
• Warning indicators are installed: flashing lights and warning sound.

Grab bucket

Grab bucket is a tool for efficiently loading and unloading materials such as, sands, coal, mineral powder and bulk chemical fertilizer, etc. The grab bucket is equipped for the crane to grab bulk materials.

There are two types of grab buckets, the orange grab and clamshell grab. The orang grab is suitable for handling materials, such as, steel scrap, big iron stock, garbage, and steel mills whereas the clamshell grab is used to lift small bulk materials, such as, grain, bulk fertilizer, etc.
