Overview

In the heavy-duty world of mining equipment manufacturing, assembly precision is the key to efficiency. Recently, Yuantai Crane partnered with a leading mining OEM in Mexico to upgrade their production facility. The mission was clear: install three high-performance 10-ton European-style double girder overhead cranes to handle the assembly of large, complex mining machinery with total control.

This project showcases how modern European design, combined with a flexible remote-led installation model, can deliver premium industrial performance while keeping logistics simple and cost-effective for the client.

Why Choose European Design for Mining Manufacturing?

Mining components are often massive and require careful handling. Our client transitioned to the European overhead crane for three specific benefits:

Optimized Vertical Space: The compact trolley design sits between the double girders, maximizing the effective lifting height (9 meters). This allowed the client to assemble taller mining modules without modifying their existing factory roof.
Stepless Speed Control: Using integrated Frequency Inverter (VFD) technology, every motion—lifting, trolley travel, and crane travel—is smooth and adjustable. This eliminates the jerks and sudden movements that can damage expensive mining parts during final assembly.
High-Duty Reliability: Designed to M5 (ISO/FEM) standards, these cranes are built for the continuous, high-frequency operation typical of a busy mining equipment workshop.

Technical Specifications

Here are the confirmed parameters for the three cranes delivered to the site in Mexico:

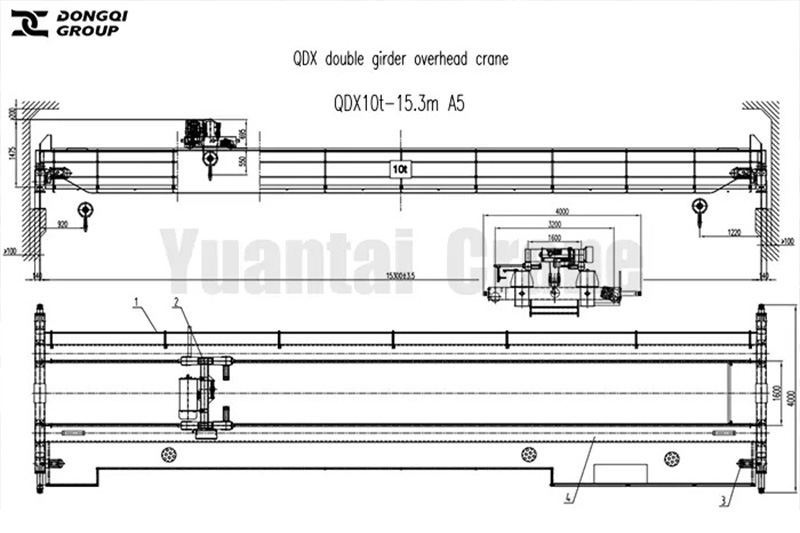

10 ton Overhead Crane Mexico Drawing

Performance & Dimensions

Quantity: 3 Units
Lifting Capacity: 10 Tons (10,000 kg)
Span: 15.3 Meters
Lifting Height: 9 Meters
Working Class: M5 (ISO) / 2M (FEM)
Power Supply: 440V / 60Hz / 3 Phase (Configured for Mexico’s industrial power)

Operational Speeds

Lifting Speed: 0.8–5.0 m/min (Variable Frequency Control)
Trolley Travel Speed: 2.0–20 m/min (Variable Frequency Control)
Crane Travel Speed: 2.0–20 m/min (Variable Frequency Control)
Trolley Gauge: 1.6 Meters

Infrastructure & Control

Runway Length: 184 Meters (P30 Heavy Rail system)
Rail Configuration: 18 pieces (10m) + 2 pieces (2m), precisely cut to fit the factory floor.
Control: Industrial-grade Wireless Remote Control with secondary pendant backup.

Smart Installation: Remote Supervision, Local Execution

To save on costs and avoid complex international travel logistics, we implemented a Remote-Assisted Installation model. The client utilized their local maintenance team to perform the mechanical and electrical assembly, while Yuantai's engineers provided:

Comprehensive 3D Guides: Visual, step-by-step assembly documentation.
Real-time Technical Support: Live video consultations for critical calibration steps, such as rail alignment and load testing.
Ready-to-Install Kit: All rails and components were pre-cut and organized, ensuring the local team could complete the installation safely and efficiently.

This "Remote Guidance + Local Team" significantly reduced the project’s total installation cost while ensuring the equipment met all required operational standards.

This model is increasingly popular for international projects, especially in regions like Mexico, America, and Canada, where skilled local labor is available.

10 ton overhead crane Mexico

What Affects the Cost of a 10 ton overhead crane in Mexico?

If you are searching for “10 ton overhead crane price in Mexico”, the cost depends on several key factors:

1. Span and Lifting Height

A larger span and a higher lifting height increase material and design costs.

2. Working Class (M5 vs M6)

Higher duty class = stronger components + higher cost.

3. Control System

Remote control, cabin control, or pendant control will affect pricing.

4. Installation Method

Overseas installation → higher cost
Local team + remote guidance → more economical

5. Customization Requirements

Special environments (mining, high temperature, dust, hazardous) may require additional protection.

European double girder crane vs Traditional Crane

Comparison Item	European Double Girder Crane	Traditional Double Girder Crane
Design Philosophy	Optimized, lightweight, modular engineering	Conventional, heavy-duty, robust design
Self Weight	15–50% lighter due to optimized structure	Heavier steel structure
Wheel Load	Lower wheel pressure → less stress on runway beams	Higher wheel pressure → may require a stronger structure
Workshop Requirements	Lower building height needed (low headroom design)	Requires higher building clearance
Lifting Height Utilization	Higher effective lifting height (compact hoist design)	Lower lifting height under the same conditions
Energy Consumption	25–40% lower energy usage with VFD control	Higher energy consumption
Control System	Variable Frequency Drive (VFD), smooth speed control	Fixed or stepped speed control
Operation Precision	High precision, smooth acceleration/deceleration	Lower precision, more load swing
Maintenance Frequency	Lower failure rate, modular components, easier maintenance	More wear and tear, higher maintenance frequency
Installation Cost	Lower overall due to reduced structural requirements	Higher due to heavier structure and reinforcement
Initial Equipment Cost	15–25% higher upfront	Lower initial purchase cost
Total Cost of Ownership (10 years)	30–40% lower overall cost	Higher due to energy + maintenance
Noise Level	Lower noise, smoother operation	Higher noise during operation
Safety Features	Advanced (inverters, overload protection, smoother motion)	Basic safety systems
Lifespan	Longer service life due to reduced stress and wear	Standard lifespan
Best Application Scenarios	Precision manufacturing, mining equipment, assembly lines	Steel mills, heavy-duty, harsh environments
Customization & Flexibility	High modular customization	Limited flexibility
Installation Method Flexibility	Supports remote guidance + local installation	More dependent on traditional installation

Typical Applications for 10 Ton Overhead Cranes

Mining equipment manufacturing
Steel structure fabrication
Machinery assembly workshops
Maintenance facilities
General industrial production

FAQ: Overhead Crane for Mexico & North America

1. Is the crane compatible with the Mexico power grid?

Yes. All motors and inverters are pre-configured for 440V / 60Hz / 3-Phase. This ensures the system runs at peak efficiency without needing additional transformers or electrical modifications.

2. What are the key benefits of the European design?

Space Saving: The low-headroom design increases your "hook height," allowing for taller assemblies within your existing building.
Precision Control: Standard VFD (Variable Frequency Drives) provide stepless speed control (0.8–5.0 m/min), eliminating load-sway and protecting sensitive mining components.

3. Is the M5 (FEM 2M) rating suitable for mining manufacturing?

Yes. The M5 / 2M rating is a heavy-duty industrial classification. It is built for high-frequency, multi-shift operations, offering a significantly longer service life for wire ropes and motors than standard light-duty cranes.

4. Are spare parts easy to find in Mexico or the USA?

Absolutely. We use internationally recognized tier-1 brands for all electrical components. If you ever need a replacement, parts are available from local industrial suppliers in cities like Monterrey, Mexico City, or El Paso.

5. What is the lead time for delivery to Mexico?

Production: 30–45 days.
Shipping: 25–35 days to major ports like Manzanillo or Lázaro Cárdenas.

We provide all necessary documentation to ensure smooth customs clearance to your factory gate.
