55 Ton European Gantry Crane in Azerbaijan for Outdoor Material Handling

Heavy Duty gantry crane Project in Azerbaijan

When industrial manufacturers need to move large steel structures, equipment modules, and fabricated components across an outdoor production yard, reliability and precise handling become critical. This is especially true for facilities where lifting operations are integrated into daily production, assembly, storage, and shipping workflows.

To support such requirements, Yuantai Crane supplied a customized 55-ton European Double Girder Rail-Mounted Gantry Crane (MGO) along with the complete crane runway system for a heavy manufacturing customer in Azerbaijan. The project is currently entering the installation phase, with Yuantai Crane engineers on site providing technical supervision and installation guidance.

This case demonstrates how a properly engineered European gantry crane system can improve outdoor material handling efficiency while providing long-term operational reliability in the challenging environments of Central and West Asia.

Project Overview

Supplier: Yuantai Crane

Customer Location: Azerbaijan

Equipment Supplied: 1 Set 55 Ton European double girder gantry crane

• Span: 12 m
• Lifting Height: 8 m
• Working Duty: A5 (Heavy-Duty Industrial Cycle)
• Power Supply: 400V / 50Hz / 3-Phase
• Hoisting Mechanism: European Double-Rail Hoist Trolley
• Control Method: Pendant Control + Wireless Remote Control

Crane Rail System Package: 96 m P43 Rail

• Rail Supply Included: 2 pcs × 10.5 m, 12 pcs × 6.25 m , along with high-strength rail clips, fishplates, and rubber leveling pads.

Current Project Status:

• Equipment was successfully delivered to the site.
• Rail installation and alignment completed.
• The crane steel structure assembly is in progress.

Yuantai Crane engineers are providing on-site installation guidance and technical supervision.

Customer Application

The customer operates a heavy industrial production facility where large fabricated steel structures and equipment components must be efficiently transferred between production, assembly, storage, and dispatch areas.

Unlike indoor workshop lifting applications, the customer's operations require material handling across an open outdoor yard. The rail gantry crane covers multiple high-frequency tasks:

• Loading and unloading large steel components and raw materials.
• Assisting with heavy equipment module assembly.
• Transporting heavy structures between outdoor workstations.
• Optimizing temporary storage and yard handling.
• Preparing finished, high-value products for international shipment.

Engineered for Central & West Asian Climates

Doing business in the Caspian Sea and broader Central/West Asia regions requires lifting equipment that can withstand demanding environmental conditions, including wide temperature fluctuations, high winds, and ambient dust. For this Azerbaijan project, Yuantai Crane incorporated specialized engineering highlights:

• IP54 Protection Rating: All critical electrical cabinets and motors feature IP54-rated enclosures to safeguard sensitive variable frequency drives (VFDs) and electrical controls against outdoor dust and moisture ingress.
• Advanced Wind-Resistant Safety: Equipped with heavy-duty rail clamps and storm anchors to ensure complete structural stability during high-wind yard conditions.
• Heavy-Duty Coating System: Multi-layer anti-corrosion painting to protect the steel structure against outdoor weathering and long-term wear.
• 100% Localized Operator Safety: To ensure seamless and safe operations on site, Yuantai Crane customized a complete set of crane nameplates, safety warning signs, and control labels in the local Azerbaijani language, ensuring clear communication and full compliance for the local operators.

Why a Rail-Mounted Gantry Crane Was Chosen

For outdoor manufacturing facilities, several lifting solutions are commonly considered, including mobile cranes, overhead cranes, and gantry cranes. In this project, a rail-mounted gantry crane (rmg) offered distinct advantages.

Predictable & Efficient Workflow: The crane operates on a fixed runway, allowing smooth movement across the entire working area. Unlike mobile cranes, there is no need for repeated setup, repositioning, or additional ground crew coordination.

Heavy Capacity with Future Margin: The outdoor working environment required a lifting solution capable of handling heavy loads under continuous operation. The 55-ton capacity provides sufficient margin for current production requirements while allowing room for future expansion.

Enhanced Operational Safety: The rail-mounted design helps improve operational safety by establishing a dedicated, predictable lifting corridor throughout the yard, minimizing ground-level transport interference.

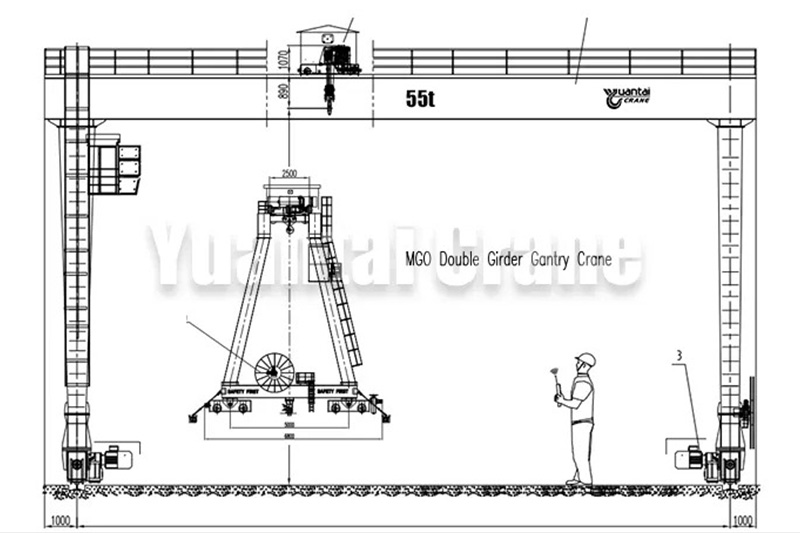

Technical Edge: The European Gantry Crane Configuration

To maximize the customer's operational efficiency, Yuantai Crane designed a customized European-style double girder gantry crane featuring highly optimized components.

Main Specifications

Complete Rail System Supply

A gantry crane is only as reliable as the runway system supporting it. For this project, Yuantai Crane supplied a complete P43 crane rail package as a single-source solution to ensure perfect compatibility between the crane wheels and the running track.

Proper rail selection and accessory matching are often overlooked during crane procurement. However, in heavy-duty outdoor applications, rail quality directly impacts wheel life, travel smoothness, structural stress distribution, and overall crane service life. By providing both the crane and the complete rail system (including all fixing clips and joint elements) as part of one package, Yuantai Crane simplified project coordination and eliminated compatibility concerns during installation.

Expected Benefits for the Customer

Once fully commissioned, the 55-ton outdoor gantry crane will become the backbone of the customer's outdoor production workflow, delivering:

• Improved Material Handling Efficiency: Move components directly between production, assembly, storage, and shipping areas without relying on multiple pieces of disconnected lifting equipment.
• Reduced Operational Costs: Daily lifting tasks can be completed with the fixed gantry crane system, drastically reducing high rental costs and reliance on mobile cranes.
• Better Safety Compliance: Localized Azerbaijani labeling, emergency stop systems, VFD-driven anti-sway for smooth movement, and robust, wind-resistant devices maximize workplace safety.
• Enhanced Yard Utilization: The RMG crane provides full overhead coverage of the working yard while keeping ground space clear and organized for production and storage operations.

Looking Ahead with Yuantai Crane

With installation progressing smoothly under the supervision of our engineering team, the project is moving closer to final commissioning and operational load testing. Once completed, this 55-ton European Gantry Crane will stand as a benchmark lifting solution for heavy fabrication plants in Azerbaijan and across the wider Central Asian markets.

For industrial lifting projects, supplying the crane structure alone is often not enough. This project demonstrates Yuantai Crane's commitment to delivering integrated turnkey support—from customized design, environmental adaptation, and localized labeling to complete track supply and overseas on-site engineering.
